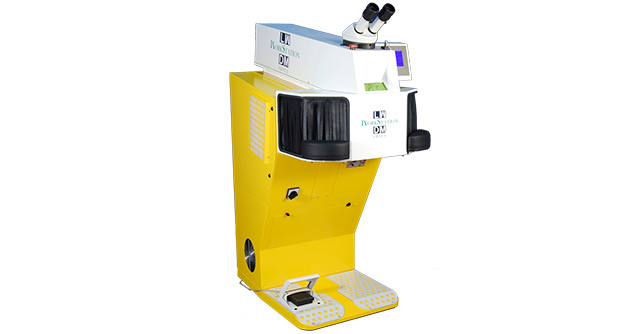

Table Top Laser Welder

Name: Table Top Laser Welder
Brand: D M IMPEX
Price: 950000 INR
Availability: InStock

Price 950000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Table Top Laser Welder Specification

Product Type
Table Top Laser Welder

General Use
Industrial Welding

Material
Stainless Steel

Capacity
6-10 gms

Weight (kg)
30 kg

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Cooling Mode
Water Cooling

Working Temperature
-10C to 45C

Accuracy
0.01 mm

Smelting Time
0.1-10 ms

Metals Type
Gold, Silver, Titanium, Platinum, Stainless Steel, Aluminium

Engraving Area
75 x 75 mm

Marking Depth
Up to 1.2 mm

Marking Speed
7000 mm/s

Linear Speed
Adjustable

Air Pressure
0.1-0.6 MPa

Power Supply
220V/50Hz

Frequency (MHz)
50/60 MHz

Wire Dimension
Optional as per requirement

Voltage
220 V

Dimension (L*W*H)
510 x 295 x 275 mm

Feature
High precision welding, low heat affected zone, minimal deformation

Color
White & Grey

Repetition Rate
0.5-20 Hz

Spot Size
0.2-3 mm Adjustable

Operation Mode
Continuous/Pulse

Cooling System
Integral Water Cooling

Display
LED Touch Screen

Laser Power
100 W / 150 W / 200 W (Optional)

Laser Wavelength
1064 nm

Max Output Energy
60 J

Pulse Width
0.1-10 ms

Focal Length
110 mm

About Table Top Laser Welder

Owing to our fair business policies, we are betrothed in offering a supreme grade array of Table Top Laser Welder. Sourced from the trusted vendors end, the offered welder is manufactured using pristine quality components and sophisticated techniques. At silversmith shops, the provided welder is used for welding purpose. In addition to this, the offered Table Top Laser Welder can be availed by our valuable patrons at most economical rates.

Features:

Sturdy construction
Long working life
Optimum performance
Perfect finish

Features

Compact And lightweight
Ideal for doing small and fine details
Multiple uses
Fast and efficient
Low Cost and low maintenance
2 Years Warranty

Special Customized Features Only for Indian market

Faster cooling with rapid heat exchanger (inbuilt) For better duty cycles and longer life
External Video connection with 16x HD Camera (Optional) For Larger images and more accurate operations.

Technical Specification :

ADVANCE	60	100	125
Power Supply	1-ph, 110-230VAC +10%, 50/60Hz, 15A Nd:YAG @1064 nm, Class 4, pulsed
Max. Pulse-power and Duration	60J at 15mS	100J at 20mS	125J at 25mS
Peak Pulse-power	4kW	4.8 kW	5 kW
Average Power	40W	55W	60W
Frequency of Repetition	0.5 to 15 Hz
Spot Size	0.3 to 1.5 mm (F120), manual setting
Stereomicroscope	10X at 45 binoculars and cross-hair pointer by LEICA
Display	TFT, color VGA 5.7"
Pulse-shaping Programs	5, preset
Cooling	Water- and air-cooled, de-ionizing filter, controlled-speed fan, heat-exchanger
Programmable Memory-cells	32
Weight	28 kg	30 kg
Programmable Memory-cells	56 x 61 x 46 cm

High-Precision Laser Welding

This table top laser welder delivers excellent precision with minimal heat-affected zones, reducing deformation and ensuring clean, strong welds. Its spot size is adjustable between 0.2 and 3 mm, supporting intricate and robust work on metals including gold, silver, titanium, and more. The pulse width and energy settings enable precise adjustments for projects demanding both finesse and depth.

User-Friendly Operation and Control

Equipped with an LED touch screen and advanced PLC controller, this machine offers straightforward, computerized operation. Users can easily adjust working parameters, switch between pulse and continuous modes, and monitor settings in real time, streamlining workflows for traders, manufacturers, and artisans alike.

Efficient Cooling for Continuous Performance

The integral water cooling system grants reliable thermal management, essential for sustained industrial applications. This advanced cooling mechanism allows the welder to maintain optimal working temperatures from -10C to 45C, enhancing durability while preventing overheating during long smelting or marking sessions.

FAQs of Table Top Laser Welder:

Q: How do I operate the table top laser welder safely and effectively?

A: Operation is streamlined via the LED touch screen and PLC control system. Before use, ensure the cooling system is filled and running, set the desired parameters such as laser power, spot size, and pulse width, then place the workpiece securely. Always wear protective eyewear and follow recommended safety procedures to protect against laser exposure.

Q: What types of metal can this laser welder handle?

A: This welder is designed for high-precision work on a range of metals, including gold, silver, titanium, platinum, stainless steel, and aluminium. It offers adjustable spot sizes and energy output, making it versatile for various metal materials in jewelry, electronics, or custom fabrication industries.

Q: When is it beneficial to use pulse mode versus continuous mode?

A: Pulse mode is advantageous for intricate tasks requiring high precision and minimal heat input, such as delicate jewelry repairs or welds on thin sheets. Continuous mode is preferable for joining larger surfaces or performing longer, uniform welds where consistent energy input is necessary.

Q: Where can this table top laser welder be installed?

A: Given its compact dimensions (510 x 295 x 275 mm) and moderate weight (30 kg), it is ideal for benchtop installation in workshops, small-scale production facilities, or laboratories. It only requires a standard 220V power supply and adequate ventilation for optimal performance.

Q: What is the process for adjusting the spot size and pulse width?

A: The spot size and pulse width can be adjusted directly through the LED touch screen interface. By selecting the desired values within the allowed range (spot size: 0.2-3 mm, pulse width: 0.1-10 ms), users can fine-tune the weld profile to achieve precise results tailored to each specific job.

Q: How does the integrated water cooling system benefit the welding process?

A: The integral water cooling system keeps the laser and optical components at optimal temperatures, thus preventing overheating and ensuring consistent laser performance throughout extended use. This maintains stable welding quality and prolongs equipment service life.
