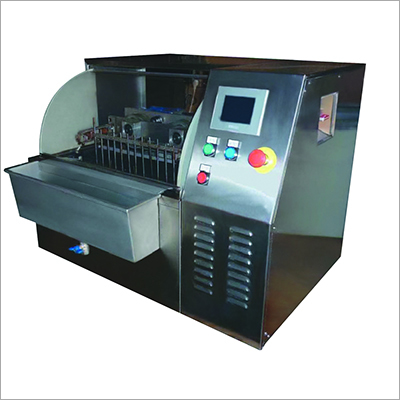

Gold Grinding Polishing System

Name: Gold Grinding Polishing System
Brand: D M IMPEX
Price: 8000 EUR
Availability: InStock

Price 8000 EUR () / Unit

Get a Price/Quote

MOQ : 1 Unit

Gold Grinding Polishing System Specification

Product Type
Gold Grinding Polishing System

General Use
Gold Jewellery Polishing and Finishing

Material
Stainless Steel and Industrial Alloy

Capacity
3-5 kg per batch

Weight (kg)
Approx. 85 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual Switch Panel

Cooling Mode
Air Cooled

Working Temperature
Ambient to 60C

Accuracy
High Precision Polishing

Metals Type
Gold, Silver, Precious Alloys

Linear Speed
Adjustable

Power Supply
220V AC, Single Phase

Frequency (MHz)
50/60 Hz

No Load Speed
2800 rpm

Voltage
220 Volt

Dimension (L*W*H)
800 mm x 500 mm x 1200 mm

Feature
Efficient Grinding, Fine Polishing, Low Noise Operation

Color
Industrial Grey & Blue

Application Area
Jewelry Workshops, Gold Refining Units

Maintenance
Low, Easy Access for Cleaning

Safety Features
Dust Proof Exhaust, Emergency Stop

Installation Type
Floor Mounted

Polishing Drum Material
High-grade Polypropylene

Accessories Included
Grinding Wheels, Polishing Consumables, User Manual

Surface Finish
Mirror Finish, Matt Finish

Production Output
Up to 15 kg/day

Motor Power
1.0 HP

Noise Level
Below 65 dB

Gold Grinding Polishing System Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
15 Days

About Gold Grinding Polishing System

As an affluent firm in this field, we are devoted in supplying our esteemed clients an exceptional quality array of Gold Grinding Polishing System. The provided system is manufactured by skilled vendors using top notch quality components and innovative techniques. This is mainly used for grinding and polishing the gold in jewelry shops. In addition to this, our esteemed patrons can easily avail the provided Gold Grinding Polishing System at cost effective rates.

Features:

Easy to operate
Unmatched performance
Fluency in function
Long life

EN-34 For Gold

Step 2 : Special Process for Grinding / Polishing the insides, recessed and intricate areas and pieces with stones in place.

GPG Comparison with other grinding and polishing processes

Process	Mechanic	Galvanic	GPG
Grinding	Two steps with different grits	None	One Step only
Finish	500	Non	Micro grinding
Fidelity of grinding with the model	Does not grind the parts where cannot touch the chips. 10 x 10 mm minimum concave or deep parts and file the edges off	Does not grind	-
Polishing	Two steps with different processes	Needs a complete previous grinding. Very efficient in the insides. Shows hidden faults	In the same grinding process, even the insides not reached by the particles
Time Employed	6 hours approx	A few seconds	10 to 60 minutes
Different pieces in the process together	Possibility of hitting between them	No Problem	No Problem
Manual finish	Exigent	Not very exigent	Not very exigent
Colliers of articulates pieces	Not advisable	No Problem	No Problem
Consumables Cost	High	Modest	Low

Advanced Efficiency for Jewelers

This system streamlines gold jewelry finishing with a powerful 1.0 HP motor and a capacity of 3-5 kg per batch. It delivers precise, high-quality results whether you require a mirror or matt finish. Its air-cooled design and adjustable linear speed ensure optimal performance for a variety of precious metals.

Designed for Safety and Convenience

Featuring dust-proof exhaust, emergency stop, and low-noise operation below 65 dB, the system prioritizes workplace safety and comfort. Its floor-mounted, sturdy construction offers stability, while the manual switch panel and included user manual make operation straightforward for new and experienced users.

Low Maintenance, High Productivity

With simple access for cleaning and minimal maintenance requirements, this polishing system is built for busy workshops. Its comprehensive accessory kit and durable stainless steel and industrial alloy frame support long-lasting service, reducing downtime and boosting production output.

FAQs of Gold Grinding Polishing System:

Q: How does the Gold Grinding Polishing System improve jewelry finishing quality?

A: The system provides high-precision polishing and grinding for gold and other precious alloys, delivering both mirror and matt finishes. The adjustable linear speed and high-quality consumables ensure consistent, professional results tailored to various artistic requirements.

Q: What safety features are included in the system?

A: Safety is reinforced by a dust proof exhaust to minimize inhalation hazards, an emergency stop button for immediate shutdown, and low noise levels (below 65 dB) to enhance workplace comfort and compliance.

Q: When should I perform maintenance on the polishing system?

A: Routine maintenance is minimal due to the systems low-maintenance design. Simply follow the cleaning instructions in the user manual and inspect accessories regularly to ensure optimal performance and longevity.

Q: Where can this polishing system be installed?

A: It is designed as a floor-mounted system, ideal for jewelry workshops, gold refining units, and similar industrial settings throughout India or globally.

Q: What is the process for using the Gold Grinding Polishing System?

A: Load gold or other precious alloys (35 kg per batch) into the high-grade polypropylene drum, select desired speed and surface finish, activate via manual switch panel, and monitor the finishing processall while safety features are engaged.

Q: Which metals is the system suitable for?

A: The system is optimized for gold, silver, and precious alloy materials, making it versatile for various jewelry and refining applications.

Q: What are the benefits of using this system in my workshop?

A: Benefits include enhanced productivity with up to 15 kg/day output, precise and consistent surface finishes, easy cleaning, low noise operation, and improved safetystreamlining your workflow and reducing manual labor.
