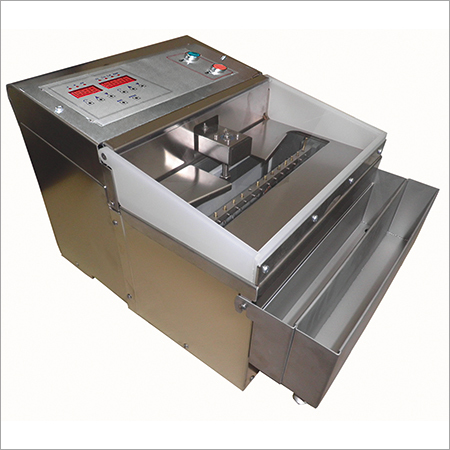

Gold Grinding And Polishing Machine

About Gold Grinding And Polishing Machine

Since our foundation, we are able to provide the finest quality Gold Grinding And Polishing Machine. Our experienced vendors use supreme grade components and advanced techniques to manufacture the provided machine in accordance with industry norms. The offered machine is ideal to be used for grinding and polishing purpose. Along with this, our esteemed patrons can easily buy the provided Gold Grinding And Polishing Machine from us at marginal rates.

Features:

GPG For Gold

Step 1 : Grinding and Polishing System for Gold Alloys

Best quality and high efficiency machines for all processes in the manufacturing of jewellery from Casting to Finishing Grinding & Pre-Polishing System for Silver and karat Gold Alloys Grinding & Polishing absorbs the biggest share of the cost and produces highest lossesing manufacturing jewellery. It gives the final finish to the process.

Our machines give high quality automatic smoothing and polishing following the design of the piece with fidelity, needing little hand labour and with very low cost

PMG Process offers
    Quality and competitivity
    Freedom in designing
    Lower Cost of production
    Less Process Loss in Electrolyte
    Security against metal taken

Cycles
    26/69 pieces per cycle with standard rack
    Racks with additional capacity (optional)
    30 minutes approx per cycle

Other Advantages
    No hitting, No bending
    Admits heavy pieces
    Process hangings or necklaces assembled
    Heavy and light pieces can be processed together

Losses
    0.5 to 5% of the weight
    Loss depends on the relation surface weight (bigger surface means higher loss) and also the quality of the surface of the pieces prior to the    process
    Practically all the loss can be recovered as it is in the cathodes and electrolytes of the machine

GPG Comparison with other grinding and polishing processes

Process	Mechanic	Galvanic	GPG
Grinding	Two steps with different grits	None	One Step only
Finish	500	Non	Micro grinding
Fidelity of grinding with the model	Does not grind the parts where cannot touch the chips. 10 x 10 mm minimum concave or deep parts and file the edges off	Does not grind	-
Polishing	Two steps with different processes	Needs a complete previous grinding. Very efficient in the insides. Shows hidden faults	In the same grinding process, even the insides not reached by the particles
Time Employed	6 hours approx	A few seconds	10 to 60 minutes
Different pieces in the process together	Possibility of hitting between them	No Problem	No Problem
Manual finish	Exigent	Not very exigent	Not very exigent
Colliers of articulates pieces	Not advisable	No Problem	No Problem
Consumables Cost	High	Modest	Low

Advanced Materials and Efficient Design

Constructed using premium stainless steel and mild steel, this machine offers exceptional durability and resistance to corrosion. The polished steel drum withstands constant use, while the efficient electric motor ensures consistent results. With its robust build and thoughtful engineering, users can rely on this machine for both small and high-volume jewelry polishing tasks.


User Safety and Simple Operation

User safety is prioritized with built-in overload protection and an emergency stop switch. The manual control panel allows easy adjustments for precise polishing. Operating at a low noise level and room temperature, the machine keeps the working environment comfortable. Floor mounting offers stability, while included dust cover and polishing media streamline the polishing process.


Versatile Application and Superior Finishing

This grinding and polishing machine is suitable for diverse metal types including gold, silver, and platinum. Its advanced features ensure a consistent mirror finish every cycle. Adjustable speed, air cooling, and semi-automatic operation support different jewelry workshop needs, making it an ideal asset for importers, suppliers, traders, and manufacturers in India.
