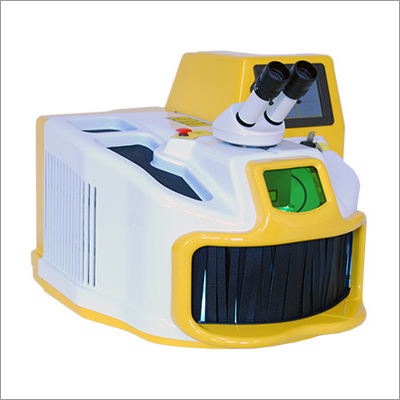

Jewelry Laser Welder

Name: Jewelry Laser Welder
Brand: D M IMPEX
Price: 13500 EUR
Availability: InStock

Price 13500 EUR () / Unit

Get a Price/Quote

MOQ : 1 Unit

Jewelry Laser Welder Specification

Product Type
Jewelry Laser Welder

General Use
Jewelry repair and welding

Material
Stainless steel housing

Capacity
Customizable depending on model

Weight (kg)
About 30 kg

Computerized
Yes

Automatic
Semi-automatic operation

Control System
Touch screen & button panel

Cooling Mode
Water Cooling

Working Temperature
-10C to 40C

Accuracy
0.01 mm

Smelting Time
Instantaneous pulse

Metals Type
Gold, Silver, Platinum, Stainless Steel, Titanium

Engraving Area
Customizable, standard 110 x 110 mm

Marking Depth
Up to 1 mm

Marking Speed
7000 mm/s

Air Pressure
No external air pressure required

Power Supply
220V/110V AC 50/60Hz

Frequency (MHz)
1-15 Hz adjustable

Wire Dimension
0.2 - 0.6 mm welding wire supported

Voltage
220V/110V

Dimension (L*W*H)
510 x 295 x 280 mm (approx.)

Feature
Low heat affected zone, precise spot-welding, minimal deformation

Color
White & Blue

Viewing Microscope
Integrated high-magnification microscope with LED illumination

Laser Wavelength
1064 nm

Application
Suitable for jewelry repair, dental labs, fine metal joining

Laser Source Type
Nd:YAG

Pulse Width
0.1 ms 20 ms adjustable

Laser Power
150W / 200W / 300W (model dependent)

Max Output Energy
100J (Joules) / pulse

Spot Diameter
0.3 2.0 mm adjustable

Noise Level
60 dB

Language Support
Multilingual interface

Display
7-inch touch LCD screen

Refrigerant
Distilled water

Cycle Time
Adjustable per operation

Protection System
Overvoltage and overcurrent auto-protection

About Jewelry Laser Welder

With the strong support of the deft professionals, we are able to offer the best quality Jewelry Laser Welder. Our vendors use high grade components and cutting edge techniques to manufacture the provided welder as per set industry norms. Offered welder is widely used for welding purpose on all kinds of metals such as silver, gold and platinum. Besides, we provide this Jewelry Laser Welder at rock bottom rates from us.

Features:

Reliable to use
Robust design
Energy efficient
Flawless finish

Special Customized Features Only for the Indian market

Special device to keep as diminutive as D0.1-0.15 mm the spot size
For safer interventions very close to precious stones and to diminutive details
External video connection with 16X HD Camera
For larger images and more accurate operations

Technical Specification :

LW Work Station DM	130	200
Power Supply	1-ph, 230VAC +10% 50/60Hz, 10A /16A Nd:YAG @1064 nm, Class 4
Max. Pulse-power and Duration	130J at 25mS	200J at 20mS
Peak Pulse-power	5.2 kW	10 kW
Average Power	75 W	135 W
Frequency of Repetition	0.5 to 20 Hz	0.5 to 40 Hz
Spot Size	0.1 to 2 mm (F120mm), motorized setting, SSCS included
Stereomicroscope	10X at 45 binoculars and cross-hair pointer by LEICA Video 16X HD camera and jack connection, included
Display	Graphic, bicolor 1/2 VGA 4.5
Pulse-shaping Programs	5, preset
Programmable Memory-cells	99
Cooling	Water- and air-cooled, de-ionizing filter, controlled- speed fan, heat-exchanger, 4-l tank, quick connector to external chiller
Weight	95 kg	105 kg
Dimensions (W x D x H)	50 x 86 x 113 cm

It is possible to adjust 10-cm higher the height of the welding chamber -optional

Precision and Versatility

The Jewelry Laser Welder offers unmatched accuracy with spot diameters as fine as 0.3 mm and an adjustable marking depth up to 1 mm. Its customizable power settings and pulse widths make it suitable for delicate jewelry repairs as well as robust metal joining tasks, catering to the varied needs of jewelers and dental technicians.

User-Friendly Technology

Equipped with a 7-inch touchscreen and multilingual interface, operation is intuitive and accessible. The integrated high-magnification microscope with LED illumination ensures operators have a clear, detailed view of their work, aiding in precise adjustment and quality assurance.

Safe and Efficient Operation

This welder incorporates overvoltage and overcurrent protections, ensuring a secure working environment. The efficient water-cooling system and low noise output make it compatible with confined workspaces. Its stainless steel construction promotes durability and longevity, suitable for heavy-duty, daily use.

FAQs of Jewelry Laser Welder:

Q: How does the Jewelry Laser Welder achieve such high precision in welding and repairs?

A: The welder uses a Nd:YAG laser with a focused spot diameter adjustable between 0.3 mm and 2.0 mm and pulse width settings from 0.1 ms to 20 ms, controlled through an integrated microscope and touchscreen. This design delivers pinpoint accuracy and minimal heat impact, ensuring delicate work on precious metals with minimal deformation.

Q: What materials and applications is this welder suitable for?

A: This machine is engineered to work effectively on gold, silver, platinum, stainless steel, and titanium. Its primary applications include jewelry repair, dental lab tasks, and other fine metal joining where precision and a minimal heat-affected zone are essential.

Q: When is it advisable to use laser welding over traditional soldering techniques?

A: Laser welding is optimal when high precision, minimal distortion, and avoidance of excess heat are needed. Its particularly recommended for intricate or heat-sensitive jewelry and dental components, especially when working with valuable metals or requiring minimal post-processing.

Q: Where can this Jewelry Laser Welder be installed and operated?

A: The compact design and modest noise level ( 60 dB) make it suitable for jewelry workshops, dental laboratories, and small-scale manufacturing units. Its 220V/110V power flexibility and water-cooling system enable installation in a wide variety of professional environments.

Q: What is the process for operating this machine for jewelry repair?

A: Operators select appropriate power, pulse width, and spot size via the touchscreen, align the workpiece under the integrated microscope for clear visibility, and use the semi-automatic controls to deliver precise laser pulses. Adjustable cycle time and multilingual interface make the process streamlined and user-centric.

Q: How does the integrated protection system benefit the user?

A: The automatic overvoltage and overcurrent protection features ensure user safety and protect the machineries internal components, reducing the risks of damage and downtime during operation.

Q: What are the main advantages of choosing this laser welder for professional use?

A: Key benefits include high precision, low heat impact, speedy operation (marking speed 7000 mm/s), easy-to-use digital controls, and compatibility with a wide range of metals and wire dimensions. Its robust, stainless steel build and advanced cooling ensure reliable, consistent performance for businesses in India.
